A washing machine drain pipe is the critical component that carries wastewater from your appliance to your home’s drainage system. Without proper installation, you risk water damage, costly repairs, and potential health hazards from standing water or sewage backups.
Proper installation matters for several compelling reasons. First, building codes in most jurisdictions mandate specific requirements for washing machine drainage to prevent contamination of potable water supplies. Second, incorrect setup leads to frequent leaks that can damage flooring, walls, and subflooring, requiring repairs that often cost thousands of dollars.
Third, poor drainage affects your machine’s performance, potentially triggering error codes and shortening its lifespan. Whether you’re setting up a new laundry room or replacing an outdated system, understanding the fundamentals ensures compliance and longevity. For complex plumbing projects, consulting professionals like those at southernplumbingworks.com can save time and prevent expensive mistakes. Similarly, just as you might find best cafes by researching thoroughly before visiting, proper research before tackling drain installation pays dividends.
Purpose of a Drain Pipe
The drain pipe channels used water containing detergent, lint, dirt, and fabric particles away from your washing machine. Modern systems typically use a standpipe (a vertical pipe extending from the floor or wall) that connects to your home’s drainage network through a P-trap, which prevents sewer gases from entering your living space.
Why Proper Installation Matters
Code compliance protects your home’s resale value and ensures insurance coverage remains valid. Most municipalities require permits for new drain installations, and inspectors verify that work meets International Plumbing Code (IPC) or Uniform Plumbing Code (UPC) standards.
Leak prevention is equally critical. The average washing machine uses 15 to 30 gallons per load, and even small drips accumulate into significant water damage over weeks or months.
Performance optimization ensures your machine drains efficiently within its cycle times. Slow drainage forces pumps to work harder, increasing energy consumption and wear on mechanical components.
Tools and Materials Needed
Gathering the right supplies before starting prevents mid-project delays and ensures professional results.
Essential Tools:
- Adjustable wrench and pipe wrench
- Hacksaw or PVC pipe cutter
- Measuring tape and level
- Screwdriver set (flathead and Phillips)
- Drill with appropriate bits
- Pipe primer and cement for PVC
- Teflon tape for threaded connections
- Bucket and rags for cleanup
Required Materials:
- Standpipe (2-inch diameter PVC, typically 34 to 42 inches long)
- P-trap assembly (2-inch)
- PVC drain pipe (2-inch diameter)
- Wall mounting brackets
- Hose guide or clamp
- Rubber coupling adapters
- Drain hose (if replacing existing)
Choosing the Right Type and Size
Most residential washing machine drains use a 2-inch diameter PVC pipe, which handles the flow rate from standard machines rated at 12 to 17 gallons per minute. Older homes might have 1.5-inch drains, but upgrading to 2-inch drains prevents backups, as modern high-efficiency machines often discharge faster than older models.
PVC is the standard material due to its affordability, durability, and ease of installation. ABS (black plastic) pipe is acceptable in many jurisdictions and offers similar benefits. Metal pipes, while less common today, may be required in certain commercial settings.
Check your washing machine’s specifications for discharge rate. High-capacity or commercial-grade machines exceeding 17 GPM may require professional assessment to determine if a 2-inch pipe suffices or if a larger diameter is necessary.
Preparing the Installation Area
Safety begins before you cut a single pipe. Water and electricity create dangerous combinations, so proper preparation is non-negotiable.
Start by shutting off the water supply to the washing machine at the wall valves or main shutoff. Turn valves clockwise until fully closed. If installing in a new location, shut off water to the entire house at the main valve.
Disconnect your washing machine by unplugging it from the electrical outlet. Never work on plumbing connections while the appliance remains plugged in, even if you’ve turned it off at the controls.
Move the washing machine away from the wall, providing at least three feet of working space. This clearance allows comfortable access to wall connections and floor drains.
Clearing Old Fixtures
If replacing an existing drain, remove the old standpipe by loosening mounting brackets and disconnecting it from the P-trap. Place a bucket beneath the P-trap before loosening connections, as residual water will drain out.
Inspect the P-trap for damage, corrosion, or heavy buildup. Replace it if you notice cracks, persistent odors, or mineral deposits that restrict flow. P-traps should be replaced every 15 to 20 years as preventive maintenance.
Examine the wall framing around the drain location. You’ll need access to studs for secure mounting of the new standpipe bracket. Use a stud finder to locate framing members, marking them with painter’s tape.
Repositioning the Washer
Ensure your chosen location provides an adequate drainage slope. The drain pipe should slope at least ¼ inch per foot toward the main drain line. Use a level to verify the slope. Upward-sloping drains cause backups and slow drainage.
Confirm adequate clearance behind the washer. Most manufacturers recommend 4 to 6 inches between the appliance and the wall for proper hose routing without kinks.
Step-by-Step Installation Process
Step 1: Selecting Location
Choose a location within 5 feet of your home’s main drain line or accessible branch line. Longer runs require additional venting and may violate code in some jurisdictions.
The standpipe must be positioned where the washing machine’s drain hose can reach without stretching. Most drain hoses are 4 to 5 feet long, though extensions are available.
Verify floor stability. Washing machines vibrate during spin cycles, and floor joists must adequately support the combined weight of the machine, water, and wet laundry-often exceeding 300 pounds.
Consider proximity to existing venting. The drain line must be properly vented to prevent airlock conditions that slow drainage. Connecting to nearby vented lines simplifies installation.
Step 2: Setting Up the Standpipe
Cut your 2-inch PVC pipe to the appropriate length. Standard standpipe height ranges from 18 to 30 inches above the P-trap weir, with 24 inches being most common. This height prevents siphoning while allowing the machine’s pump to discharge effectively.
Never install a standpipe shorter than 18 inches, as siphoning can occur-continuously pulling water from the machine’s tub even during fill cycles. This wastes water and prevents proper washing.
Heights exceeding 96 inches may prevent proper drainage as most washing machine pumps cannot push water beyond 8 feet vertically. Consult your machine’s manual for maximum drain height specifications.
Assembly Process:
- Apply PVC primer to the outside of the pipe end and inside of the P-trap fitting. The primer softens the plastic for chemical bonding.
- Apply PVC cement immediately after priming, using even coverage. Insert the pipe into the fitting with a quarter turn, holding for 30 seconds while the cement sets.
- Allow joints to cure for at least 2 hours before testing, or 24 hours before full operation. Rushing this step risks joint failure under pressure.
Securing Standpipe and Wall Brackets
Mount a pipe bracket to wall studs at a point approximately two-thirds up the standpipe height. This prevents lateral movement during drain discharge.
Use appropriate fasteners for your wall type. Drywall requires toggle bolts or anchors rated for at least 20 pounds. Screwing directly into studs provides the strongest support.
Ensure the standpipe remains perfectly vertical using a level. Even slight angles can create drainage issues over time as water seeks the path of least resistance.
Some installations benefit from a second bracket near the top of the standpipe, particularly if the drain hose connection point sits high on the pipe. This prevents wobbling when the hose is inserted or removed.

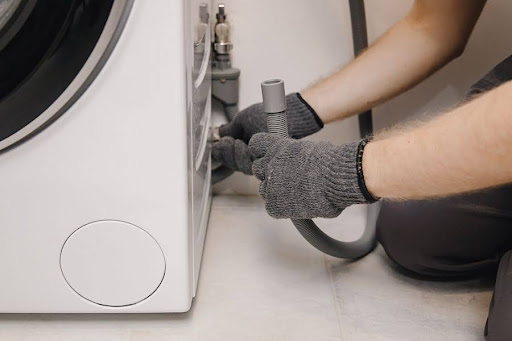

Step 3: Connecting the Drain Hose
Insert the washing machine’s drain hose into the standpipe, leaving it loose rather than sealing it. The air gap between the hose and the pipe is intentional-it prevents backflow from the drain system into your washing machine.
The hose should extend 6 to 8 inches into the standpipe. Deeper insertion risks creating an airlock; shallower placement may allow the hose to pop out during vigorous discharge.
Using Hose Guides and Clamps:
Install a hose guide at the standpipe opening. These plastic or metal devices prevent the hose from being pushed out by water pressure while maintaining the necessary air gap.
Never use clamps or tape to seal the connection between the drain hose and the standpipe. This creates a closed system that can cause drainage problems and violates most plumbing codes.
Route the drain hose with a gradual slope from the machine to the standpipe. Avoid dips or loops where water can collect, as trapped water promotes mold growth and odors.
Tips for Extensions and Length Limits:
If your machine’s standard hose doesn’t reach the standpipe, purchase a drain hose extension kit rather than improvising with garden hoses or other unsuitable materials. These kits include properly sized hoses with secure connectors.
Maximum drain hose length typically ranges from 96 to 120 inches, depending on pump specifications. Exceeding this length reduces drainage efficiency and may trigger error codes.
When connecting extension hoses, use hose clamps rated for constant submersion. Standard hose clamps corrode quickly in the damp environment of a laundry room.
Check all connections for security by gently tugging on joined sections. Any movement indicates insufficient clamping that will worsen with vibration during operation.
Step 4: Venting and Testing the System
Proper venting prevents negative pressure that can siphon water from the P-trap, allowing sewer gases into your home. The vent allows air to enter the drain line as water flows out, maintaining atmospheric pressure.
Connect your drain line to the nearest properly vented drain stack within the distance allowed by local code-typically 5 feet for 2-inch drains. If no vented line exists nearby, you must install an air admittance valve (AAV) or run a vent pipe through the roof.
Code Requirements for Venting:
Most codes require venting within a specific distance from the P-trap based on pipe diameter. For 2-inch drains, the maximum horizontal distance from the trap to vent is typically 5 feet, though this varies by jurisdiction.
Air admittance valves must be installed at least 4 inches above the drain line and in accessible locations for potential servicing. They should never be installed in airtight spaces where they cannot draw in air.
Vent pipes extending through the roof must terminate at least 12 inches above the roofline and 10 feet from any air intake, window, or door.
How to Test for Leaks:
Before pushing your washing machine back into position, run a complete wash cycle without laundry to test the drainage system under realistic conditions.
Place old towels beneath all connections and watch for drips during the drain portions of the cycle. Even minor seepage indicates joints that need retightening or resealing.
Fill a bucket with water and pour it quickly into the standpipe to simulate the machine’s discharge rate. Water should disappear immediately without bubbling or rising back up-both signs of inadequate venting or blockages downstream.
Check the P-trap for leaks by running your hand along the bottom of connections while water flows. Look for moisture on the floor beneath the trap after testing completes.
Listen for gurgling sounds during drainage. While some noise is normal, loud gurgling suggests venting problems that should be addressed before regular operation begins.
Troubleshooting Common Issues
Odors, Clogs, and Water Backups
Persistent sewage odors indicate a failed P-trap seal. This happens when the trap dries out from infrequent use or when negative pressure siphons water from the trap.
Pour a gallon of water into the standpipe monthly if you don’t use your washing machine regularly. This maintains the water barrier in the P-trap that blocks sewer gases.
Clogs typically develop in the horizontal drain line between the P-trap and main stack. Lint, soap residue, and fabric fibers accumulate over the years, gradually restricting flow.
Use a drain snake to clear blockages, feeding it through the standpipe or by removing the P-trap cleanout plug. Chemical drain cleaners are less effective for washing machine drains and can damage PVC pipes.
Water backing up into the standpipe during or after cycles indicates either a clog downstream or an inadequate drain line size for your machine’s discharge rate. Start by clearing visible obstructions, then consider whether a larger pipe is necessary.
Fixing Leaks and Drainage Problems
Leaks at threaded connections often result from insufficient Teflon tape or cross-threaded fittings. Disassemble the connection, clean both threads thoroughly, apply 3 to 4 wraps of new Teflon tape in a clockwise direction, and reassemble with firm but not excessive force.
PVC joint leaks require cutting out the failed section and installing new pipe with proper primer and cement application. There’s no reliable way to repair a leaking solvent-welded joint without replacement.
Slow drainage without obvious clogs may indicate improper slope in horizontal drain runs. Measure the slope with a level-it should drop at least ¼ inch per foot toward the main drain.
If drainage slows over time rather than failing suddenly, biofilm buildup inside pipes is likely. Running an enzymatic drain cleaner monthly helps prevent this organic material from restricting flow.
Resolving Error Codes
Many washing machines display error codes when drainage problems occur. Samsung models show 4C or LC codes when water fails to drain within the expected timeframe.
First, check for kinks in the drain hose that restrict flow. Even minor bends can significantly reduce drainage speed.
Verify the standpipe height meets your machine’s specifications. Some high-efficiency models require standpipes at least 30 inches high to prevent siphoning, which can trigger drainage errors.
Clean the machine’s drain pump filter, typically located behind a small access panel at the front bottom of the machine. Coins, buttons, and lint accumulate here and can slow the pump.
If errors persist after checking these items, the pump itself may be failing. Listen for unusual noises during the drain cycle-grinding or humming without water movement suggests mechanical pump failure requiring professional repair.
Maintenance and Long-Term Care
Preventive maintenance extends the life of your drainage system and prevents emergency repairs.
Monthly Cleaning Routines:
Run an empty hot water cycle with 2 cups of white vinegar monthly. This dissolves soap buildup and mineral deposits in the drain hose and standpipe.
Remove and inspect the drain hose quarterly. Look for cracks, soft spots, or internal buildup that restricts flow. Replace hoses showing any degradation-they’re inexpensive compared to flood damage.
Pour water into the standpipe to verify the P-trap maintains its seal, especially if you’ve traveled or the machine sat unused for several weeks.
Wipe down the exterior of the standpipe and connections, checking for moisture that indicates developing leaks. Address any dampness immediately before it causes water damage.
Preventing Mold, Mildew, and Hose Kinks
Leave the washing machine door or lid open between uses to allow interior moisture to evaporate. This prevents mold growth that can spread to drain components.
Ensure adequate ventilation in the laundry room. Poor air circulation promotes mildew on walls near the drain connection.
Route drain hoses without tight bends. The minimum bend radius for most washing machine drain hoses is 2 inches-tighter curves restrict flow and create stress points where leaks develop.
Support the drain hose at multiple points if it runs more than 4 feet to the standpipe. Unsupported lengths sag over time, creating low spots where water pools.
Code Compliance and Safety Tips
Building codes exist to protect health, safety, and property. Understanding local requirements prevents violations that complicate home sales or insurance claims.
How to Check Local Codes
Contact your municipal building department to obtain specific requirements for your area. Many jurisdictions now offer online access to adopted codes and amendments.
The International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) serve as models, but local amendments often modify requirements. Never assume code compliance based solely on internet research without verifying local adoption.
Permit requirements vary dramatically by location. Some jurisdictions require permits for any new drain installation, while others exempt simple appliance replacements. Verify requirements before starting work to avoid fines or required removal of completed work.
P-Trap, Vent, and Pipe Size Notes
P-traps must have a water seal depth of 2 to 4 inches. Deeper traps create unnecessary resistance; shallower traps allow sewer gases to escape during heavy discharge.
The trap weir (the highest point inside the trap) determines minimum standpipe height. Measure from the weir, not from the floor, when calculating the 18 to 30 inch requirement.
Vent sizing depends on drain pipe diameter and fixture unit load. A 2-inch drain typically requires a 1.5-inch or larger vent within the prescribed distance from the trap.
Never reduce pipe size in the direction of flow. If connecting a 2-inch drain to a 1.5-inch existing line, you must upsize the existing line-installing reducers causes backups.
When to Call a Professional
DIY installation works well for straightforward replacements, but some situations demand professional expertise.
Signs of Major Issues
Multiple drains backing up simultaneously indicate a main sewer line problem beyond the scope of appliance drain installation. Professional diagnosis prevents wasted effort treating symptoms rather than causes.
Persistent sewage odors despite a water-filled P-trap suggest venting problems that may require running new vent pipes through walls and roofs-work best left to licensed plumbers.
Foundation cracks near drain lines or signs of settling may affect dthe rainage slope. Professionals have tools to verify proper grade and can recommend solutions like installing grinder pumps if gravity drainage becomes impossible.
Limits of DIY
Working with cast iron or galvanized steel drains requires specialized tools and techniques. While PVC modifications are straightforward, connecting to dissimilar materials often requires professionals to prevent galvanic corrosion and ensure code-compliant transitions.
Running new drain lines through finished walls involves carpentry, potential electrical or HVAC relocation, and finishing work. Unless you possess these skills, hiring contractors prevents damage and ensures quality results.
Permit-required work should involve professionals unless you’re comfortable with inspection processes. Failed inspections require corrections and re-inspection fees that quickly exceed the cost of hiring licensed tradespeople initially.
Conclusion
Installing a washing machine drain pipe correctly protects your home from water damage while ensuring your appliance performs efficiently for years. Following manufacturer specifications, adhering to local codes, and using quality materials creates a reliable system that handles daily demands without constant maintenance.
The key elements-proper standpipe height, secure connections, adequate venting, and regular maintenance-work together to channel thousands of gallons safely away from your living space annually. Whether you tackle installation yourself or hire professionals, understanding these fundamentals helps you make informed decisions and recognize quality work.
Take your time during installation, double-check measurements, and test thoroughly before considering the job complete. The hours invested in proper setup prevent the days of disruption and expense that follow hasty, incorrect installation. Your home’s plumbing system is only as strong as its weakest connection, making careful attention to every joint and fitting essential for long-term success.
